Vehicle Specifications

• Engine Code: 2ZR-FXE

• Displacement: 1.8 Liter (1,797cc)

• Type: 4-Cylinder, 16-Valve DOHC

• Cycle: Atkinson Cycle (Hybrid Specific)

• Valvetrain: VVT-i (Variable Valve Timing with intelligence)



Vehicle Fitments

• 2016-2021 Toyota Prius (XW50 Chassis - Gen 4)

• 2017-2021 Toyota Prius Prime (Plug-in Hybrid)



Included Parts

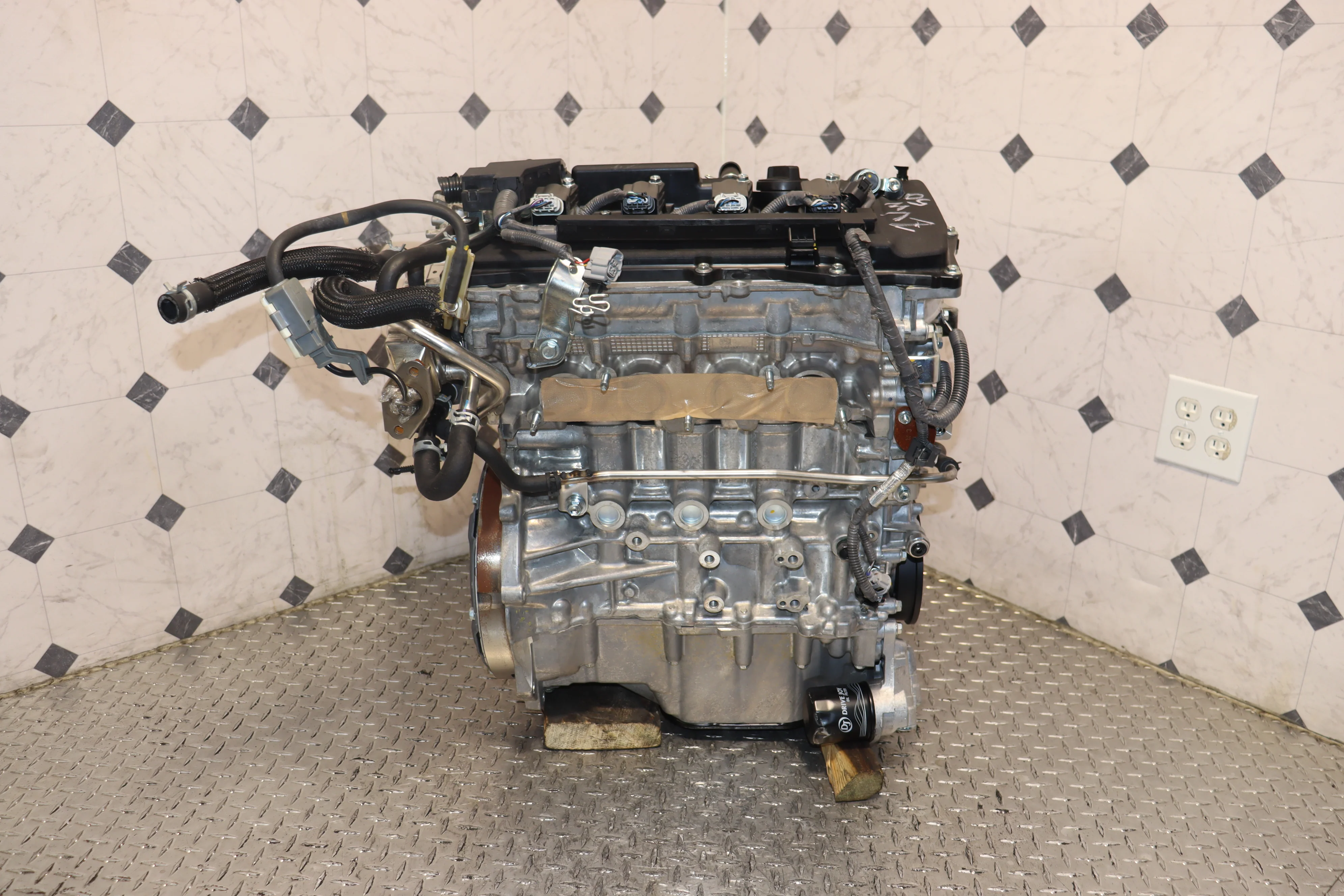

• Engine Long Block (Cylinder Head & Engine Block)

• Intake Manifold & Throttle Body

• Fuel Injectors & Rail

• Coil Packs & Spark Plugs

• Oil Pan & Timing Cover



Installation & Notes

• Direct Replacement: This JDM 2ZR-FXE is a direct swap for the USDM version. However, you must reuse your original intake & exhaust manifolds, wiring harness and any sensors that may have different plug configurations.

• Service Items: We highly recommend replacing the EGR cooler, PCV valve, and cleaning the intake manifold ports during installation to prevent future carbon buildup.



• EGR System: Ensure your original EGR system is cleaned and transferred correctly to maintain emissions compliance.
